Discover the TPA6132A2RTER Headphone Amplifier Solution
The TPA6132A2RTER headphone amplifier stands out as a pivotal component in modern audio solutions. This amplifier significantly enhances sound quality, offering users an immersive listening experience. With its advanced features, it delivers remarkable sound clarity and versatility across various applications.
Key benefits of the TPA6132A2RTER include:
Improved Audio Fidelity: Users enjoy clearer and more detailed sound reproduction.
Versatile Connectivity: This amplifier seamlessly integrates with multiple devices, making it suitable for both portable and desktop setups.
As the demand for high-quality audio continues to grow, the TPA6132A2RTER meets the needs of audiophiles and casual listeners alike.
Key Takeaways
The TPA6132A2RTER amplifier improves sound quality by delivering clear and detailed audio for a better listening experience.
It uses efficient technology to save battery life, making it perfect for portable devices like smartphones and tablets.
This amplifier reduces unwanted noise and eliminates popping sounds, ensuring smooth and clear audio playback.
It connects easily with many devices thanks to its flexible input options, supporting both single-ended and differential signals.
The TPA6132A2RTER works well in many settings, from portable gadgets to home audio and professional studios, offering reliable and powerful sound.
TPA6132A2RTER Overview
The TPA6132A2RTER serves as a high-performance headphone amplifier designed to enhance audio experiences. This device plays a crucial role in audio amplification by delivering clear and powerful sound to headphones. Its innovative design allows it to efficiently drive headphones while maintaining sound integrity.
One of the standout features of the TPA6132A2RTER is its 'DirectPath' architecture. This technology enables efficient stereo headphone amplification with low power consumption and minimal distortion. Users benefit from an output power of 25 mW, making it ideal for portable and battery-powered devices. This capability ensures that listeners can enjoy high-quality audio without draining their device's battery quickly.
Additionally, the TPA6132A2RTER incorporates 'Pop Suppression' technology. This feature eliminates audible pops and clicks during power-up and power-down transitions. As a result, users experience a smoother and more enjoyable listening experience. These technical innovations significantly enhance the overall performance of the amplifier, making it a preferred choice for audiophiles and casual listeners alike.
TPA6132A2RTER Specifications
Power Output and Performance
The TPA6132A2RTER headphone amplifier boasts impressive technical specifications that enhance its performance. This amplifier delivers a maximum output power of 25 mW per channel when driving a 16 Ohm load. This capability allows users to enjoy robust audio without compromising sound quality. The device operates within a voltage range of 2.3 V to 5.5 V, making it versatile for various applications, from portable devices to more stationary setups.
The recommended operating conditions for optimal performance include:
Parameter | Recommended Operating Condition / Feature |
|---|---|
Supply Voltage Range | 2.3 V to 5.5 V |
Operating Temperature Range | -40°C to 85°C |
Typical Supply Current | Approximately 2.1 to 2.2 mA |
Gain Settings | -6 dB, 0 dB, 3 dB, 6 dB |
Output Power | 25 mW into 16 Ω speakers |
Technology Features | DirectPath™ (no DC-blocking capacitors), pop suppression, short-circuit and thermal-overload protection |
Input Type | Fully differential or single-ended inputs |
Additional Protections | ±8 kV HBM ESD protection, high power supply noise rejection (PSRR 100 dB at 217 Hz, 90 dB at 10 kHz) |
Shutdown Mode Current | Less than 1 µA |
Noise Reduction Features
The TPA6132A2RTER incorporates several advanced noise reduction technologies that enhance audio fidelity. These features work together to minimize unwanted noise and ensure a clear listening experience. The following table summarizes the key noise reduction technologies integrated into the amplifier:
Noise Reduction Technology | Description |
|---|---|
Fully Differential Inputs | Reduces system noise pickup between audio source and amplifier |
High Power Supply Noise Rejection | Provides 100 dB PSRR at 217 Hz and 90 dB PSRR at 10 kHz, minimizing power supply noise |
Improved RF Noise Immunity | Differential architecture enhances resistance to RF interference |
Built-in Pop Suppression Circuitry | Eliminates turn-on and turn-off pop noise, improving audio fidelity |
These features collectively contribute to the TPA6132A2RTER's reputation as a reliable and high-quality headphone amplifier. By effectively managing noise and ensuring stable performance, this amplifier stands out in the competitive audio market.
Compatibility of TPA6132A2RTER
The TPA6132A2RTER headphone amplifier is compatible with a variety of consumer electronic devices. It excels in battery-operated gadgets, such as smartphones and tablets. Its low power consumption and compact design make it an ideal choice for these portable devices. Users can enjoy high-quality audio without worrying about draining their device's battery quickly.
In terms of connection options, the TPA6132A2RTER supports both fully differential and single-ended audio inputs. This flexibility allows it to connect seamlessly with various audio sources. For instance, it can accept standard line-level audio signals from devices that provide either differential or single-ended outputs. By grounding the negative input pins, users can easily connect single-ended signals. This feature enhances the amplifier's versatility, making it suitable for a wide range of audio applications.
Here are some examples of devices that can work well with the TPA6132A2RTER:
Smartphones: Perfect for enhancing mobile audio experiences.
Tablets: Ideal for portable media consumption.
Laptops: Great for improving audio quality during video calls or streaming.
Digital Audio Players: Enhances sound fidelity for music enthusiasts.
The TPA6132A2RTER's design ensures that it can integrate smoothly with these devices, providing users with an exceptional listening experience. Whether users are enjoying music, watching movies, or gaming, this amplifier delivers clear and powerful sound.
Practical Applications
The TPA6132A2RTER headphone amplifier finds numerous applications across different settings. Its design and features make it an excellent choice for enhancing audio experiences in various environments. Here are some notable use cases:
Portable Devices: The TPA6132A2RTER excels in portable audio applications. Users can integrate it into smartphones, tablets, and digital audio players. Its low power consumption ensures that devices maintain battery life while delivering high-quality sound.
Home Audio Systems: This amplifier can enhance home audio setups. Users can connect it to televisions or gaming consoles to improve sound clarity during movies or gaming sessions. The TPA6132A2RTER provides a richer audio experience, making it ideal for entertainment enthusiasts.
Professional Audio Equipment: Musicians and audio engineers can utilize the TPA6132A2RTER in studio settings. Its ability to deliver clear sound reproduction makes it suitable for monitoring audio tracks during recording sessions. The amplifier's low noise features ensure that professionals hear every detail in their mixes.
Educational Settings: Schools and universities can benefit from the TPA6132A2RTER in classrooms and lecture halls. Teachers can use it to connect audio sources to headphones or speakers, ensuring that students receive clear audio during lessons or presentations.
Tip: When selecting an amplifier for portable applications, consider the TPA6132A2RTER for its compact size and efficient power usage. It provides excellent sound quality without compromising battery life.
TPA6132A2RTER vs. Other Amplifiers
When evaluating the TPA6132A2RTER against other headphone amplifiers, several factors come into play, including output power, efficiency, and overall performance. This comparison highlights how the TPA6132A2RTER stands out in the market.
Technical Specifications Comparison
The following table outlines key specifications of the TPA6132A2RTER alongside other popular headphone amplifiers:
Specification Aspect | TPA6132A2RTER Details | TPA6040A4RHBR Details |
|---|---|---|
Amplifier Class | Not specified | |
Output Power | 25 mW per channel at 16Ω | 2.3W per channel at 4Ω; 200mW per channel at 16Ω |
Supply Voltage | 2.3 V to 5.5 V | 4.5V to 5.5V |
Features | DirectPath architecture, pop suppression | Differential inputs, short-circuit & thermal protection, shutdown |
Package Type | 16-WFQFN Exposed Pad | 32-VQFN (5x5) surface mount |
Status | Current model | Obsolete |
This table illustrates that while the TPA6132A2RTER offers competitive output power, it lacks some detailed specifications compared to the TPA6040A4RHBR. However, its DirectPath architecture and pop suppression features provide significant advantages in sound quality and user experience.
Performance Metrics

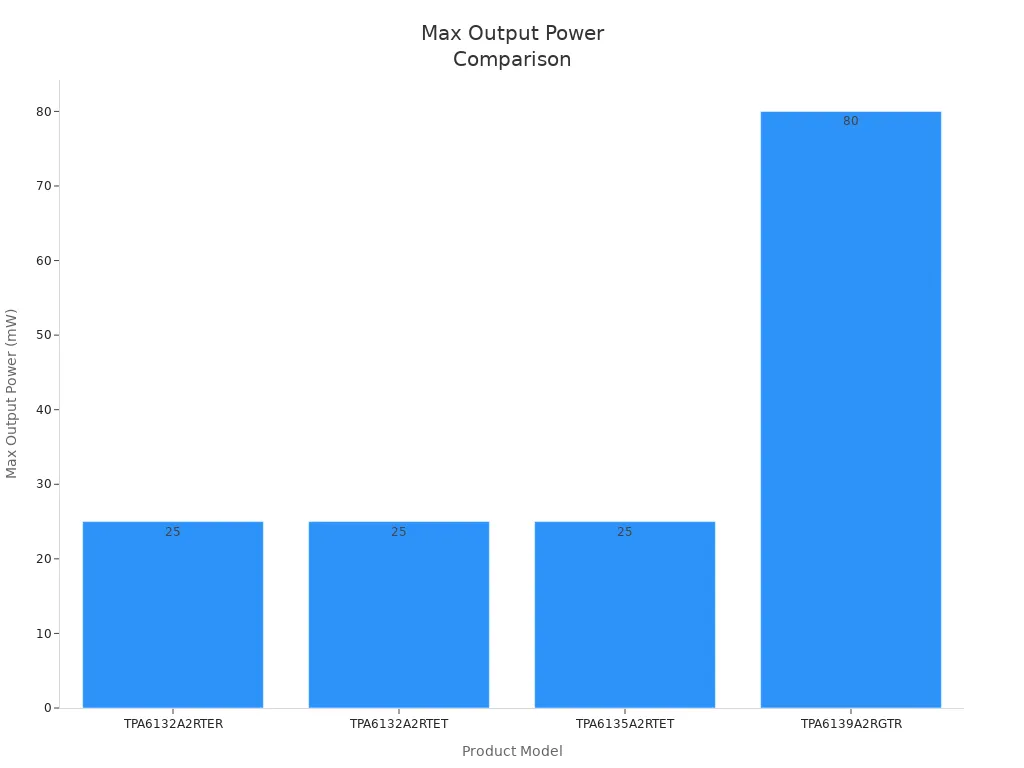

The following table compares the measured output power and power supply rejection ratio (PSRR) of the TPA6132A2RTER with similar products:
Product Model | Package Type | Channels | Max Output Power (per channel) | Power Supply Rejection Ratio (PSRR) |
|---|---|---|---|---|
TPA6132A2RTER | 16-WFQFN Exposed Pad | 2 | 25 mW | 100 dB |
TPA6132A2RTET | 16-WFQFN Exposed Pad | 2 | 25 mW | 100 dB |
TPA6135A2RTET | 16-WFQFN Exposed Pad | 2 | 25 mW | 100 dB |
TPA6139A2RGTR | 20-WFQFN Exposed Pad | 2 | 80 mW | 86-96 dB |
The TPA6132A2RTER maintains a consistent output power of 25 mW across its models, which aligns well with its competitors. However, the TPA6139A2RGTR offers a higher maximum output power of 80 mW, making it a better choice for users requiring more power.
Value for Money
In terms of value for money, the TPA6132A2RTER provides excellent performance for its price point. Its combination of low power consumption, compact design, and advanced features makes it a strong contender in the headphone amplifier market. Users seeking a reliable and efficient amplifier will find the TPA6132A2RTER to be a worthwhile investment.
Tip: When selecting a headphone amplifier, consider your specific audio needs. The TPA6132A2RTER is ideal for portable applications, while other models may offer higher output power for more demanding setups.
In summary, the TPA6132A2RTER headphone amplifier offers significant advantages for audio enthusiasts. Its impressive power output, low noise features, and versatile compatibility make it an excellent choice for various applications. When selecting a headphone amplifier, users should consider factors such as impedance matching and sound quality. The TPA6132A2RTER excels in these areas, ensuring a high-fidelity audio experience. Whether for portable devices or home audio systems, this amplifier enhances sound clarity and overall enjoyment. For anyone seeking a reliable and efficient audio solution, the TPA6132A2RTER stands out as a top contender.
FAQ
What is the TPA6132A2RTER headphone amplifier?
The TPA6132A2RTER is a high-performance headphone amplifier designed to enhance audio quality. It delivers clear sound and supports various devices, making it suitable for both portable and stationary setups.
How does the DirectPath architecture benefit users?
DirectPath architecture allows the TPA6132A2RTER to amplify audio efficiently. This design minimizes distortion and power consumption, ensuring users enjoy high-quality sound without draining their device's battery quickly.
Can the TPA6132A2RTER connect to different devices?
Yes, the TPA6132A2RTER is compatible with smartphones, tablets, laptops, and digital audio players. It supports both fully differential and single-ended audio inputs for versatile connectivity.
What are the noise reduction features of the TPA6132A2RTER?
The TPA6132A2RTER includes several noise reduction technologies, such as fully differential inputs and built-in pop suppression. These features minimize unwanted noise, ensuring a clear listening experience.
Is the TPA6132A2RTER suitable for professional audio applications?
Absolutely! The TPA6132A2RTER is ideal for professional audio settings. Its low noise features and clear sound reproduction make it perfect for monitoring audio tracks during recording sessions.
