What Are the Most Common Circuit Board Components and Their Functions

You will often find these circuit board components in almost every electronic device:

• Resistors control the flow of electric current.

• Capacitors store and release energy.

• Inductors manage changes in current.

• Diodes let current flow in only one direction.

• Transistors switch and amplify signals.

• Integrated Circuits combine many parts into one chip.

• Transformers change voltage levels.

• Relays act as switches.

• Connectors link different parts together.

Learning about these circuit board components helps you repair, design, and build your own projects. Many experts say this knowledge opens doors for beginners and professionals. You can join global communities, solve problems, and even move into advanced careers by understanding these basics.

Key Takeaways

• Circuit boards use common parts like resistors, capacitors, diodes, transistors, and connectors to control and manage electricity.

• Active components like transistors and integrated circuits control or amplify signals, while passive components like resistors and capacitors store or limit energy.

• Each component has a clear role, such as resistors limiting current and capacitors storing energy, which helps you design and fix circuits effectively.

• You can identify components by their shapes, colors, and markings, and use tools like magnifying glasses and multimeters to test and confirm their function.

• Following simple troubleshooting steps and understanding component functions makes repairing and building electronic devices easier and more reliable.

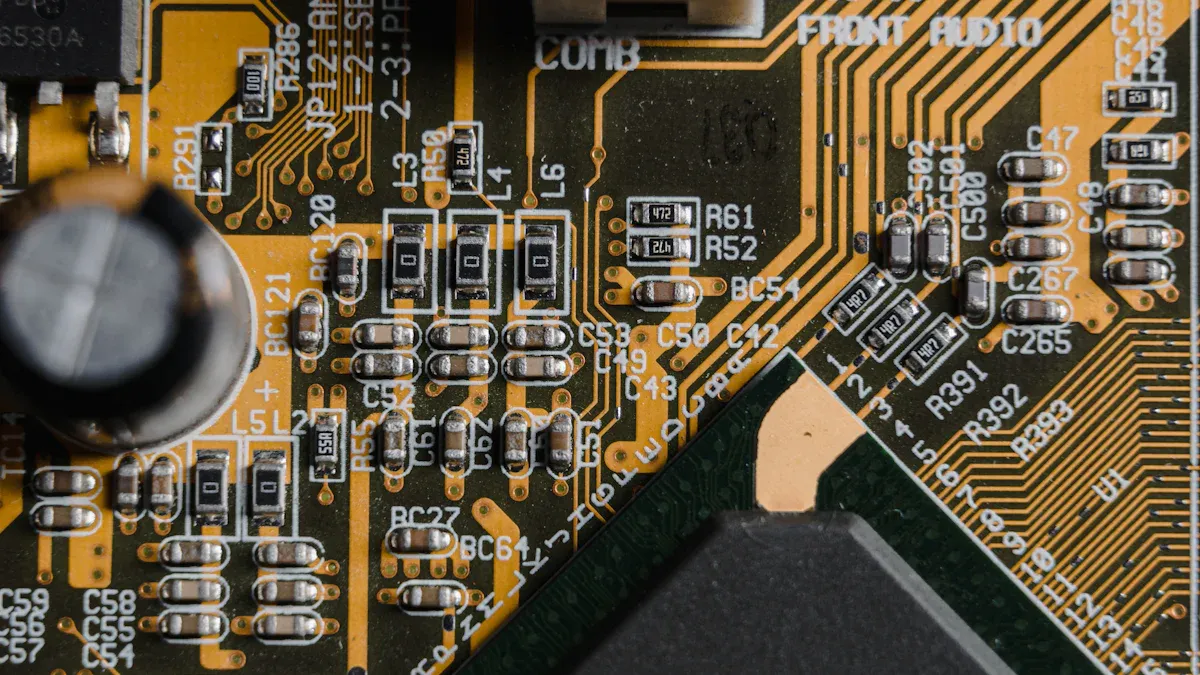

What Are Electronic Components

Definition

Electronic components are the basic building blocks of every circuit board. You use these parts to control, direct, and change the flow of electricity. Each component has a unique job. Some store energy, while others move signals or protect other parts. When you look at a circuit board, you see many small pieces. These pieces work together to make the device function.

You can find two main types of electronic components: active and passive. Active components, like transistors and integrated circuits, control the flow of electricity. Passive components, such as resistors and capacitors, do not add energy to the circuit. Instead, they manage or store energy. Electromechanical parts, like switches and connectors, help you interact with the circuit.

Purpose

You use electronic components to build circuits that solve real-world problems. Each part serves a specific purpose. For example, resistors limit the amount of current. Capacitors store and release energy when needed. Diodes let current flow in only one direction. Transistors act as switches or amplifiers. Integrated circuits combine many functions into a single chip.

Here is a table that shows the primary purpose of some common components and where you might use them:

📝 Tip: When you design a circuit, you select and connect these components to meet your needs. You must consider performance, cost, and reliability. Understanding each part helps you make better choices and build circuits that work well.

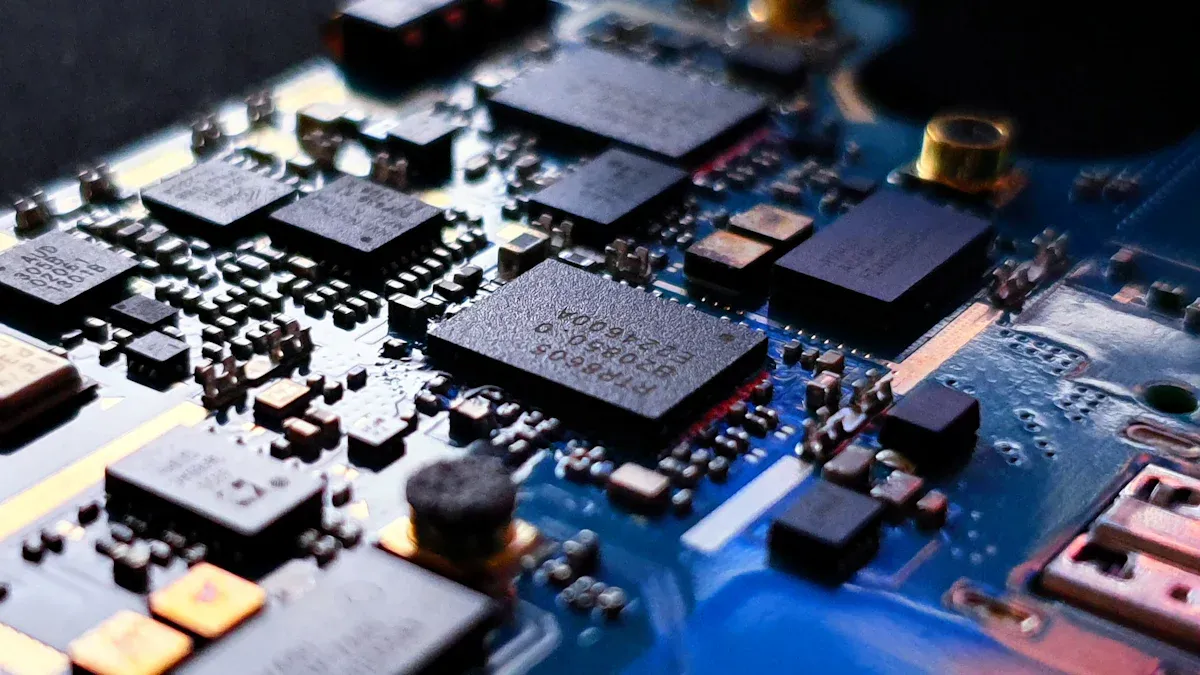

Types of Circuit Board Components

When you look at a circuit board, you see many different parts. Engineers group these parts into three main types: active, passive, and electromechanical components. Each type has a special role in how your device works.

Active Components

Active components need an external power source to work. You use them to control, amplify, or switch electrical signals. These parts can make a signal stronger or turn it on and off. Here are some common examples:

• Transistors: Switch or amplify signals in circuits.

• Diodes: Allow current to flow in only one direction.

• Integrated Circuits (ICs): Combine many tiny parts into one chip for complex tasks.

🟢 Tip: Active components help you build circuits that can process information, like computers or radios.

Passive Components

Passive components do not need extra power to work. They cannot make signals stronger. Instead, they store, resist, or filter energy. You use them to control the flow of electricity or store energy for later use. Common passive components include:

• Resistors: Limit the amount of current in a circuit.

• Capacitors: Store and release electrical energy.

• Inductors: Store energy in a magnetic field.

• Transformers: Change voltage levels in circuits.

You find passive components in almost every electronic device. They help you filter signals, store energy, and protect other parts.

Electromechanical Components

Electromechanical components connect electrical and mechanical systems. You use them to make or break connections, move parts, or link different boards together. Some important examples are:

• Relays: Act as switches that use a small signal to control a larger current.

• Connectors: Join different parts of a circuit or connect your device to other devices.

These components make sure your circuit board components work together smoothly. They also help you connect your board to the outside world.

Common Circuit Board Components

Resistors

Resistors are one of the most important circuit board components you will use. You use them to control how much current flows through a circuit. Resistors help protect sensitive parts by limiting current and creating voltage drops. You can also use them to divide voltage, adjust signal levels, and even generate heat in some cases.

Here are some typical functions of resistors in electronic circuits:

1. Limit current to protect other components.

2. Adjust voltage levels.

3. Divide current in parallel branches.

4. Stabilize voltage.

5. Sense temperature with special types like thermistors.

6. Control amplification in circuits.

7. Filter out noise when combined with capacitors or inductors.

8. Create time delays with capacitors.

You will find many types of resistors:

1. Carbon film resistors for general use.

2. Metal film resistors for precision.

3. Wirewound resistors for high power.

4. Thick and thin film resistors for different accuracy needs.

5. Variable resistors (potentiometers) for tuning.

6. Light-dependent resistors for light sensing.

7. Thermistors for temperature sensing.

8. Fusible resistors for protection.

Most resistors have standard values, like 10, 22, 47, or 100 ohms. You choose the right tolerance for your project. For example, ±5% is common for general use, while ±1% is better for precision work.

💡 Tip: Always check the color bands or printed numbers to identify resistor values.

Capacitors

Capacitors store and release electrical energy. You use them to smooth out voltage, filter signals, and create timing delays. Capacitors help keep your circuit stable by removing noise and providing quick bursts of energy when needed.

Common functions of capacitors include:

• Filtering out high-frequency noise.

• Smoothing voltage in power supplies.

• Coupling AC signals between circuit stages.

• Decoupling to prevent voltage dips.

• Bypassing high-frequency noise to ground.

You will find several types of capacitors:

• Ceramic capacitors are small and good for high-frequency use.

• Film capacitors are stable and reliable, often used in audio circuits.

• Electrolytic capacitors store a lot of energy and smooth power supplies.

• Tantalum capacitors are compact and stable, used in mobile devices.

• Mica capacitors are precise and stable for special uses.

📝 Note: Always match the capacitor type to your circuit’s needs for best performance.

Inductors

Inductors store energy in a magnetic field when current flows through them. You use inductors to control changes in current and filter out unwanted signals. Inductors help protect sensitive parts and keep voltage steady.

You will see inductors in power supplies, radios, and audio equipment. They filter noise, smooth signals, and reduce voltage spikes. In power electronics, inductors stabilize voltage and improve efficiency. Special types like common mode chokes reduce electromagnetic interference in power and data lines.

The core material of an inductor, such as ferrite or iron, affects its performance. Air core inductors work well in high-frequency circuits like antennas.

🔎 Tip: Inductors often look like coils of wire or small blocks with wire windings.

Diodes

Diodes let current flow in only one direction. You use diodes to convert AC to DC, protect circuits, and process signals. Diodes are essential for power supplies, battery chargers, and signal processing.

Here is a table showing the main roles and types of diodes:

Transistors

Transistors act as switches and amplifiers. You use them to turn signals on and off or make weak signals stronger. Transistors are key circuit board components in computers, radios, and many other devices.

There are two main types:

• Bipolar Junction Transistors (BJTs): You control them with a small current at the base terminal. They work well in low-current circuits.

• Field-Effect Transistors (FETs), including MOSFETs: You control them with voltage at the gate terminal. They are better for high-power and high-speed circuits.

⚡ Tip: Transistors help you build logic circuits, amplifiers, and power controllers.

Integrated Circuits

Integrated circuits (ICs) combine many tiny components into a single chip. You use ICs to manage power, process signals, store data, and control devices. ICs make modern electronics smaller, faster, and more reliable.

You will find ICs in smartphones, computers, cars, and industrial machines. They handle everything from simple timing to complex data processing.

Transformers

Transformers transfer electrical energy between circuits. You use them to change voltage levels, isolate circuits, and match impedance. Transformers are vital in power supplies, audio equipment, and communication devices.

🛡️ Note: Transformers help keep your devices safe and efficient by managing voltage and isolating circuits.

Relays

Relays are switches that you control with electricity. You use relays to turn circuits on or off with a small signal. Relays let you control high-power devices safely from a low-power circuit.

• When you power the relay coil, it closes the normally open contact and completes the circuit.

• The normally closed contact stays closed until you activate the relay.

• Relays come in different types, such as SPST, SPDT, DPST, and DPDT, which control one or two circuits.

Common relay types include:

• Electromechanical relays (EMR) with moving parts.

• Solid state relays (SSR) with no moving parts for fast switching.

• Reed relays for compact and quick operation.

You often use relays in power supplies, automotive systems, and industrial controls. Protection components like flyback diodes prevent voltage spikes when you switch the relay.

Connectors

Connectors join different parts of your circuit or link your device to the outside world. You use connectors to make assembly, repair, and upgrades easier. Connectors come in many shapes and sizes for different jobs.

Some common connector types and uses:

• Pin headers and sockets for board-to-board or wire-to-board connections.

• USB connectors for data and power in computers, tablets, and smartphones.

• Power connectors for high current in power supplies and industrial equipment.

• D-Sub connectors for video, audio, and serial data.

• Terminal blocks for secure wire clamping in power and industrial circuits.

• RF connectors for high-frequency signals in wireless devices and antennas.

🔗 Tip: Always choose the right connector for your application to ensure reliable connections.

You will find these circuit board components in almost every modern device. Market analysis shows that semiconductors, ICs, sensors, relays, and connectors dominate the consumer electronics sector. These parts help you build reliable, efficient, and advanced electronic products.

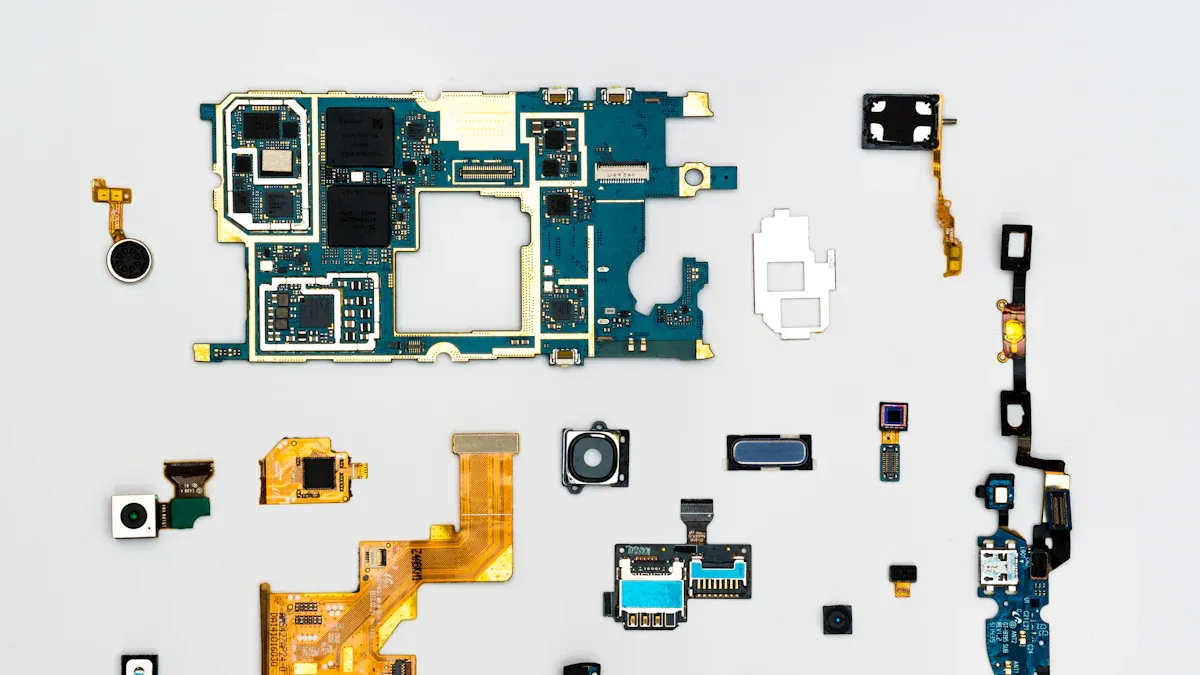

Identifying Components

Visual Cues

You can identify most parts on a circuit board by looking for certain shapes, colors, and markings. Each component has a unique appearance. For example, resistors often have colored bands that show their value. Capacitors may look like small cylinders or flat discs. Diodes usually have a stripe that marks the cathode end. Transistors are black and have three pins arranged in a line or triangle. Integrated circuits are rectangular with many pins on the sides and have labels showing the maker and model.

Connectors and headers stand out because of their size and shape. Pin headers look like rows of metal pins. Socket connectors have plastic housings. Power connectors are larger, while data connectors such as USB ports are rectangular. RF connectors are round.

You will also see labels, codes, and polarity signs printed on the board. These help you match each part to its place in the circuit. Surface-mounted devices (SMDs) are very small and may not have clear markings. You may need a magnifying glass or microscope to read their codes. Good lighting helps you spot small details. Always check for alphanumeric codes, color bands, and logos. These markings often require cross-referencing with datasheets or online tools.

💡 Tip: Use reference charts or code books to decode color bands and SMD markings.

Tools

You can make identification easier with the right tools. A magnifying glass or microscope helps you see tiny labels and codes, especially on SMDs. Good lighting is important for spotting subtle details. Multimeters let you test components to confirm their type and value.

Many professionals use SMD code books or online databases to look up unknown markings. You can also use datasheets from manufacturers to match codes and pin layouts. For labeling, industry standards suggest using silkscreen printing, laser marking, or barcode labels. These methods keep labels clear and durable, even in harsh environments.

🛠️ Note: Always double-check pin numbers and footprints with datasheets to avoid mistakes during assembly.

Troubleshooting

Fault Signs

When you troubleshoot a circuit board, you need to look for clear signs that something is wrong. Many repair professionals check for these common problems:

• Components that do not work when tested with a multimeter.

• Soldering issues, such as cold joints, solder splatter, or poor reflow, which can cause bad connections.

• Physical damage like cracks, chips, bent parts, corrosion, or discoloration.

• Moisture damage or signs of rust on metal parts.

• Burn marks, overheating, or areas that feel hot to the touch.

• Frequent short circuits or open circuits that make the device unstable.

• Parts that look broken, missing, or out of place.

• Damaged traces on the board, which can break the flow of electricity.

You may also notice the device loses power, works only sometimes, or stops working completely. These signs help you find where to start your inspection.

🔍 Tip: Always use good lighting and a magnifying glass to spot small cracks or soldering problems.

Basic Steps

You can follow a step-by-step process to find and fix faulty parts on a circuit board. Here is a simple guide:

1. Map out the board by studying the schematic and identifying key sections like power, ground, and signal paths.

2. Visually inspect the board for burned spots, bulging or cracked components, and bad solder joints. Use a magnifier if needed.

3. Compare the faulty board with a working one to spot differences in components, traces, or readings.

4. Use a multimeter to test resistors, capacitors, diodes, and transistors. Check each value against the datasheet.

5. Test integrated circuits with a logic analyzer or oscilloscope. Make sure the orientation and solder joints are correct.

6. Check power supply voltages to find shorts or drops.

7. Remove and replace any faulty parts you find.

8. Clean away old or worn solder to improve connections.

9. Repair damaged tracks with jumper wires if needed.

10. Test the board again to confirm the repair worked.

⚡ Note: Always document your steps and results. This helps you track what you have checked and makes future repairs easier.

You now know the essential circuit board components and how each one works. Use the table below to review their main functions:

When you recognize these circuit board components, you make repairs and designs easier. Many trusted resources, such as JHDPCB and Avanti Circuits, help you learn more about these parts. Keep this guide handy for troubleshooting and future projects.

FAQ

What is the difference between active and passive components?

Active components, like transistors and ICs, control or amplify electrical signals. Passive components, such as resistors and capacitors, only store or manage energy. You need both types to build working circuits.

How can you tell if a component is faulty?

You can spot faulty parts by looking for burn marks, cracks, or bulges. Use a multimeter to test for correct values. If a part looks damaged or gives the wrong reading, you should replace it.

Why do circuit boards use different types of capacitors?

Each capacitor type has special strengths. Ceramic capacitors work well for high-frequency signals. Electrolytic capacitors store more energy for power supplies. You choose the right type based on your circuit’s needs.

Can you replace a resistor with any value?

No, you must use the correct value. Using the wrong resistor can cause your circuit to work poorly or even break. Always check the color bands or numbers to find the right replacement.

What tools help you identify small components?

A magnifying glass or microscope helps you see tiny labels. You can use a multimeter to test values. Reference charts and online code books also help you match markings to the correct part.
