What Makes the MIMX8MM5DVTLZAA Microprocessor Stand Out
The MIMX8MM5DVTLZAA microprocessor belongs to NXP’s i.MX 8M Mini series. It features a multicore design and advanced 14nm FinFET process technology. Engineers use this processor to power a wide range of embedded applications, from smart home devices to industrial control systems. Its combination of high performance and efficiency makes it a standout choice for demanding projects.
Key Takeaways
The MIMX8MM5DVTLZAA combines a powerful quad-core ARM Cortex-A53 and a real-time Cortex-M4 core to deliver strong multitasking and fast control in one chip.
Advanced 14nm FinFET technology and dynamic power management help devices run cooler and last longer on battery power.
It supports flexible memory options like LPDDR4, DDR4, and DDR3L, allowing developers to balance speed, cost, and power use.
Built-in multimedia features include a GPU for smooth 3D graphics and a DSP for high-quality audio, reducing CPU load and improving performance.
Robust security tools like TrustZone and secure boot protect data and prevent tampering, making it ideal for smart home, industrial, and smart city applications.
MIMX8MM5DVTLZAA Overview
Architecture
The MIMX8MM5DVTLZAA microprocessor uses a powerful architecture designed for modern embedded systems. It features a quad-core ARM Cortex-A53 cluster, each core running at up to 1.8 GHz. This setup delivers strong processing power for multitasking and demanding applications. Alongside the Cortex-A53 cores, the processor includes a dedicated ARM Cortex-M4 core. This core handles real-time tasks and offloads time-sensitive operations from the main cluster. The chip uses advanced 14LPC FinFET process technology, which improves energy efficiency and reduces heat generation. This combination of high-speed cores and efficient manufacturing allows the MIMX8MM5DVTLZAA to balance performance with low power consumption.
Tip: The integration of both Cortex-A53 and Cortex-M4 cores enables developers to run complex operating systems and real-time control tasks on a single chip.
Applications
The MIMX8MM5DVTLZAA targets a wide range of embedded applications. Its robust architecture and multimedia capabilities make it suitable for consumer, industrial, and smart city solutions. The table below highlights typical application domains, example uses, and key features that support each area:
Application Domain | Typical Embedded Applications | Key Features Supporting Application |
|---|---|---|
Smart Home | Smart refrigerators, air conditioners, home theaters, multi-room audio | Quad-core Cortex-A53 @1.8 GHz, Cortex-M4 for real-time tasks, 1080p60 video, 3D/2D graphics, HiFi 4 DSP for audio |
Smart Building | Elevator controls, lighting systems, security networks | Dual Gb Ethernet (TSN), CAN-FD interface |
Environmental Monitoring | HVAC control, occupancy-based lighting, air quality sensors | On-chip temperature sensors, GPIO interfaces, real-time data analysis |
Smart City | Intelligent transportation, urban surveillance with HD cameras, machine learning | High-performance ISP, 12MP@30fps or 4kp45, integrated NPU for image recognition |
Industrial Automation | Industrial control and automation | PCIe Gen3, USB 3.0, FlexCAN, UART, I2C, SPI, strong security features |
The MIMX8MM5DVTLZAA holds a strong position in the market as a high-performance, versatile microprocessor. It supports advanced multimedia, machine learning, and secure connectivity. Developers choose this processor for projects that demand reliability, security, and flexible communication options.
Key Features
Performance
The MIMX8MM5DVTLZAA microprocessor delivers strong performance for embedded systems. Its 64-bit data bus allows fast data transfers between the processor and memory. The quad-core ARM Cortex-A53 cluster runs at speeds up to 1.8 GHz, handling multitasking and complex workloads with ease. The dedicated ARM Cortex-M4 core manages real-time tasks, ensuring responsive control for time-sensitive operations.
Power efficiency stands out as a core strength. The processor uses dynamic voltage and frequency scaling (DVFS) to adjust power use based on workload. This feature helps save energy during light tasks and boosts performance when needed. The chip also supports multiple low-power modes. Each section of the chip can enter sleep states independently, reducing energy use even further. Integrated power management IC support gives precise control over power rails and system sequencing.
Dynamic voltage and frequency scaling (DVFS) adapts power to workload.
Multiple low-power modes allow independent sleep states for chip sections.
Integrated power management IC support enables precise power control.
Note: These features help designers build products that run cooler and last longer on battery power.
Memory Support

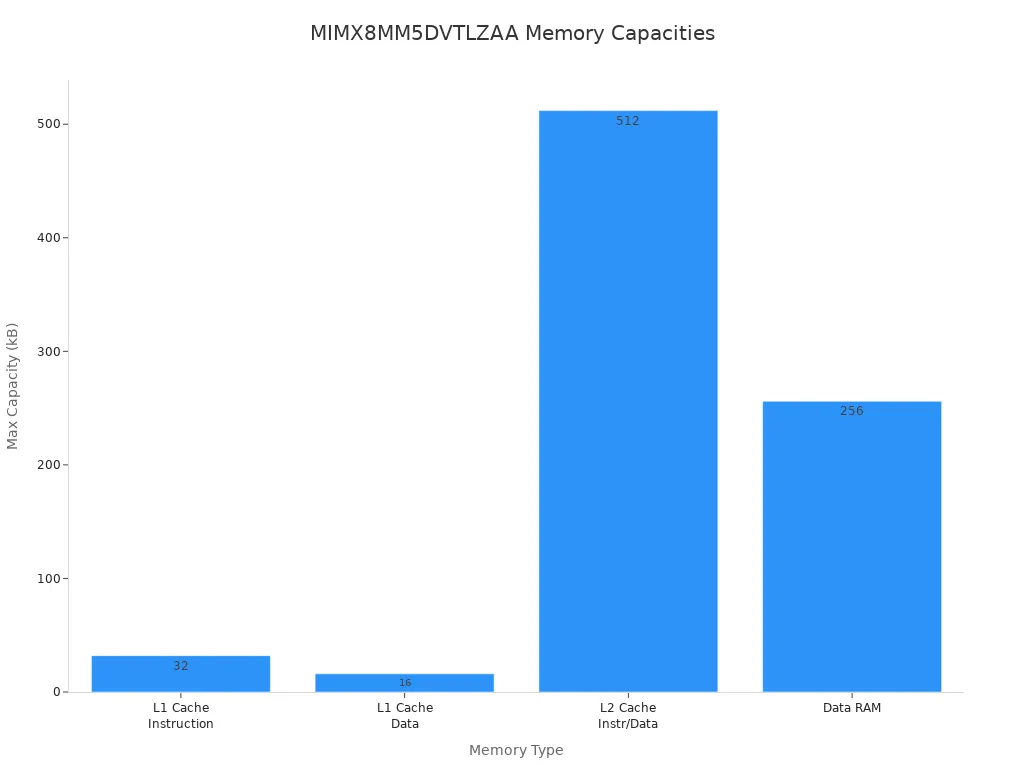

Efficient memory management is essential for high-performance embedded systems. The MIMX8MM5DVTLZAA includes several types of on-chip memory and supports a range of external memory options. The table below summarizes the supported memory types and their capacities:
Memory Type | Supported Types / Sizes |
|---|---|
L1 Cache Instruction Memory | 32 kB |
L1 Cache Data Memory | 16 kB |
L2 Cache Instruction/Data | 512 kB |
Data RAM | 256 kB |
External Memory Interface | LPDDR4, DDR4, DDR3L (types supported, max capacity not specified) |
The processor supports LPDDR4, DDR4, and DDR3L external memory. This flexibility lets developers choose the best memory type for their application, balancing speed, cost, and power use.
Multimedia
Modern embedded applications often require advanced multimedia capabilities. The MIMX8MM5DVTLZAA features the Vivante GC7000Lite GPU. This graphics processor provides hardware acceleration for both 2D and 3D rendering. It supports OpenGL ES 3.1 and Vulkan graphics APIs, which enable smooth user interfaces and advanced 3D graphics. Developers can create rich visual experiences for smart home devices, industrial panels, and more.
The processor also includes a HiFi 4 DSP for high-quality audio processing. It supports 1080p60 video playback and advanced image processing, making it suitable for applications like video conferencing, smart displays, and surveillance systems.
Tip: Hardware-accelerated graphics and audio reduce CPU load, improving overall system performance.
Security
Security is a top priority for connected devices. The MIMX8MM5DVTLZAA integrates several advanced security features to protect data and ensure device integrity. Key security technologies include:
Advanced High Assurance Boot (A-HAB): Verifies software authenticity during startup.
ARM TrustZone: Separates secure and non-secure operations on the chip.
Cryptographic Acceleration and Assurance Module (CAAM): Handles encryption, decryption, and secure key storage.
eFuse: Stores unique device identifiers and security keys in tamper-resistant memory.
Random Number Generator (RNG): Provides high-quality random numbers for cryptographic operations.
These features help developers build products that meet strict security standards in industries like smart home, industrial automation, and smart city infrastructure.
Unique Advantages
Comparison
Many microprocessors in the embedded market offer strong performance or low power use. Few combine both as well as the MIMX8MM5DVTLZAA. Competing chips often focus on either high-speed processing or energy savings. This processor stands out because it delivers both. The quad-core ARM Cortex-A53 cluster provides fast multitasking. The Cortex-M4 core handles real-time control. Together, these cores support complex applications without wasting energy.
Some processors lack advanced multimedia features. The MIMX8MM5DVTLZAA includes a Vivante GC7000Lite GPU. This GPU supports 3D graphics and smooth video playback. Many similar chips do not offer this level of graphics support. The HiFi 4 DSP adds high-quality audio processing. This feature helps devices deliver clear sound in smart speakers and video systems.
Security also sets this processor apart. Many microcontrollers offer basic protection. The MIMX8MM5DVTLZAA uses advanced tools like TrustZone and A-HAB. These features protect data and prevent unauthorized access. Developers can build safer products for homes, factories, and cities.
Note: The MIMX8MM5DVTLZAA stands out by combining strong performance, advanced multimedia, and robust security in one chip.
Differentiators
Several unique features make this processor a top choice for embedded projects. The 14LPC FinFET process technology keeps power use low. Devices run cooler and last longer on battery power. This benefit matters for portable products and smart home devices.
The flexible memory support helps developers choose the best memory for each project. LPDDR4, DDR4, and DDR3L options allow for cost savings or higher speeds. The chip’s dynamic voltage and frequency scaling (DVFS) adjusts power use to match the workload. This feature saves energy during light tasks and boosts speed when needed.
Real-world examples show these advantages. A smart display can use the GPU for smooth graphics and the DSP for clear audio. The Cortex-M4 core manages sensors and touch input in real time. Security features protect user data and prevent tampering. In industrial settings, the processor’s strong security and reliable performance keep machines running safely.
Devices with this processor can:
Run advanced graphics and audio without extra chips.
Stay secure against cyber threats.
Operate longer on battery power.
Handle real-time control and complex tasks at the same time.
💡 Developers save time and cost by using one chip for many functions. They can build smarter, safer, and more efficient products.
Industry experts recognize this processor for its robust quad-core architecture, real-time processing, and advanced multimedia support. The table below highlights its core strengths:
Core Strength Category | Details |
|---|---|
CPU Architecture | 64-bit quad-core Arm Cortex-A53 up to 1.8 GHz; balances power efficiency and high performance; supports Linux and Android |
Real-time Processing | Dedicated Arm Cortex-M4 core at 400 MHz for low-latency control tasks |
Security Features | Hardware root of trust, cryptographic acceleration, secure boot, tamper detection |
Engineers select this platform for industrial control, IoT, and multimedia systems. Its high processing power, versatile memory support, and secure interfaces make it a leading choice for demanding embedded applications.
FAQ
What operating systems does the MIMX8MM5DVTLZAA support?
The processor supports Linux and Android. Developers can also use FreeRTOS on the Cortex-M4 core. This flexibility helps teams choose the best software for their project needs.
Can the MIMX8MM5DVTLZAA handle AI or machine learning tasks?
Yes, the processor supports basic machine learning. It uses its integrated GPU and DSP for tasks like image recognition. For advanced AI, developers may need external accelerators.
How does the processor ensure device security?
The MIMX8MM5DVTLZAA uses hardware features like TrustZone, A-HAB, and CAAM. These tools protect data, verify software, and prevent tampering. Security remains strong for both consumer and industrial devices.
What types of memory can developers use with this processor?
Developers can use LPDDR4, DDR4, or DDR3L memory. The processor also includes on-chip cache and RAM. This range allows for flexible designs and cost control.
Is the MIMX8MM5DVTLZAA suitable for battery-powered devices?
Yes. The 14LPC FinFET process and power management features help reduce energy use. Devices can run longer on battery power and stay cool during operation.
