What Are Electronic Integrated Circuits and How Do They Work

Electronic integrated circuits, often called microchips or chips, are tiny devices made from thin pieces of semiconductor material like silicon. You find many small parts, such as transistors, resistors, and capacitors, all built together on one chip. These parts work as a team to process signals or control electronic actions. Because electronic integrated circuits pack so much power into a small space, you see them in almost every modern device, from smartphones to cars.

Key Takeaways

• Electronic integrated circuits, or microchips, combine many tiny parts on a small silicon chip to control and process electronic signals.

• Transistors, resistors, capacitors, and diodes work together inside chips to perform tasks like switching, amplifying, and filtering signals.

• Chips come in three types: analog for continuous signals, digital for binary data, and mixed-signal that handle both.

• Integrated circuits make devices smaller, faster, and more energy-efficient while lowering costs and improving reliability.

• You find these chips in everyday gadgets like smartphones, computers, cars, and medical devices, powering modern technology.

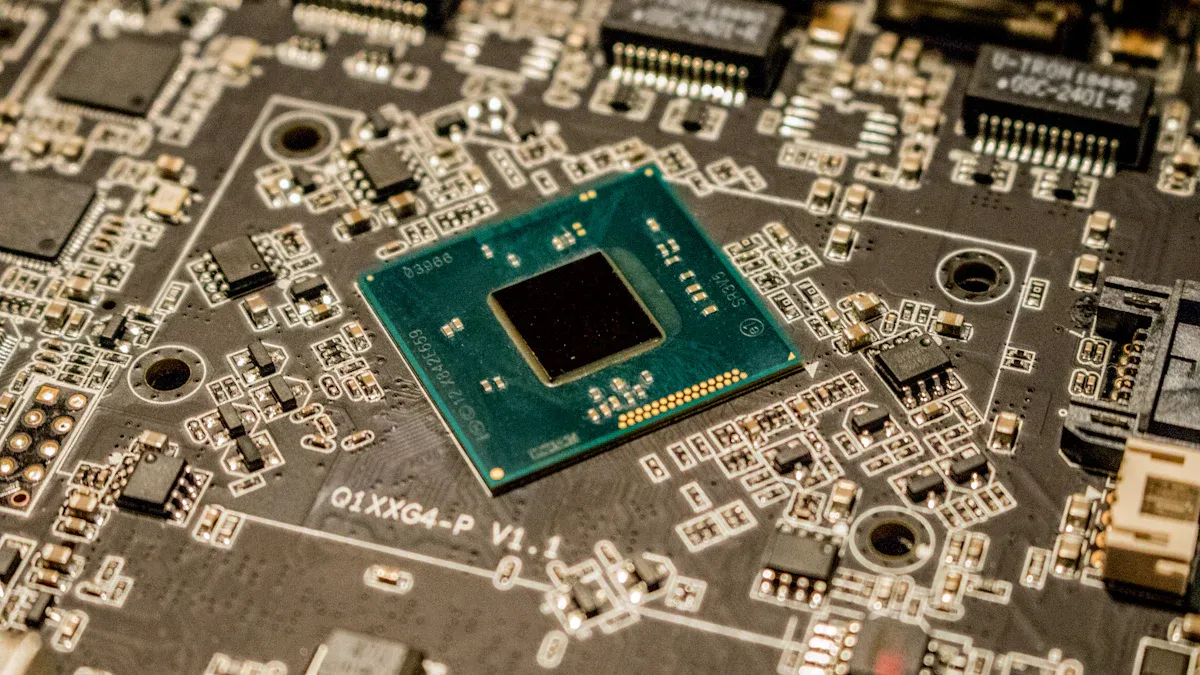

Electronic Integrated Circuits

What Are ICs

You often hear the term "electronic integrated circuits" when people talk about modern technology. These tiny devices, also called microchips or chips, act as the brains of many electronic products. You can find them in computers, phones, cars, and even kitchen appliances.

Did you know?
Engineers use several names for these devices. Here is a quick guide:

Electronic integrated circuits perform many important functions. You use them for amplification, switching, and digital computation. Some ICs handle analog tasks like filtering and signal conditioning. Others work with digital data, running logic operations and processing information. You also find special ICs for memory storage, wireless communication, power management, and sensor control. Each type of IC helps your devices work faster, smarter, and more efficiently.

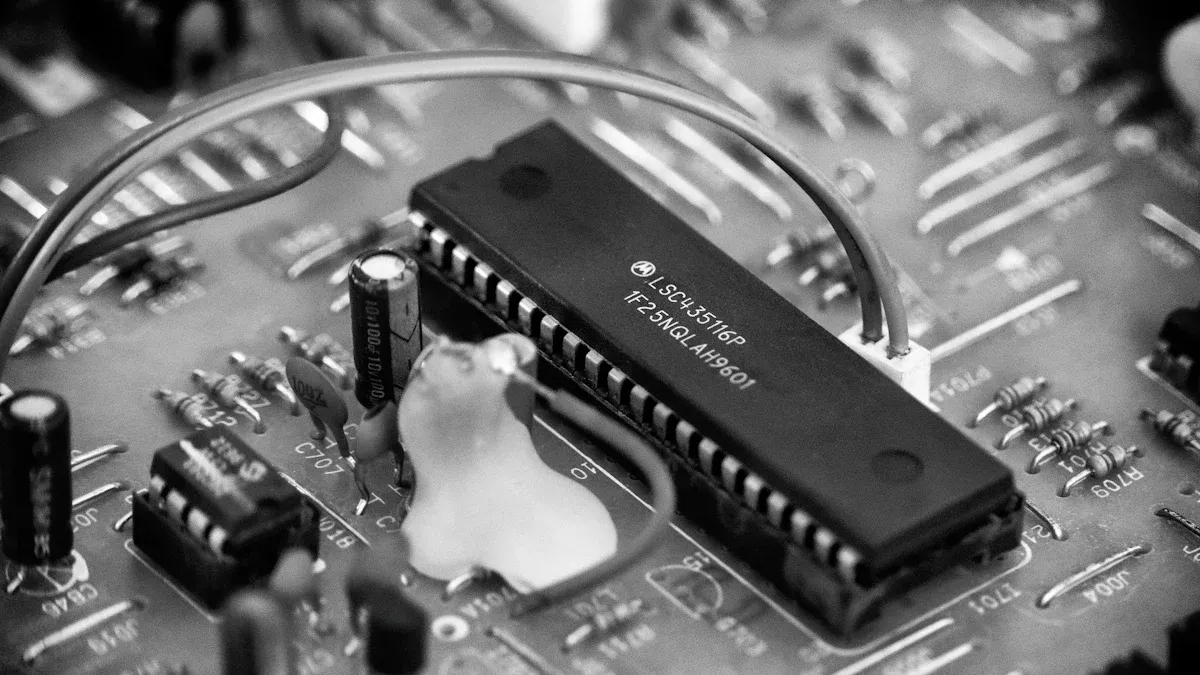

Microchip Structure

You might wonder how engineers make these powerful chips so small. Most electronic integrated circuits are built on a thin slice of silicon. Silicon is the best choice because it is easy to find, affordable, and works well as a semiconductor. It can conduct electricity when needed and block it at other times. Silicon also stays stable at high temperatures and resists damage from water or chemicals. These qualities make it perfect for building reliable microchips.

When you look inside a microchip, you see many tiny parts packed closely together. These parts include transistors, resistors, capacitors, and diodes. Engineers use special tools to place and connect these parts on the silicon wafer. The process creates a compact and miniaturized circuit that fits in the palm of your hand.

• Miniaturization brings many benefits:

  • Shorter paths between parts mean signals travel faster.

  • Chips can run at higher speeds and use less power.

  • Devices become smaller and lighter, making them easier to carry.

  • Lower power use helps batteries last longer and supports eco-friendly designs.

However, packing so many parts into a small space also creates challenges. Heat can build up quickly, and engineers must find ways to keep chips cool. As chips get smaller, they become harder to design and manufacture. Still, the advantages of miniaturization help you enjoy faster, more powerful, and more energy-efficient devices every day.

Components

Transistors

Transistors form the heart of every integrated circuit. You can think of them as tiny electronic switches or amplifiers. When you use a device like a smartphone or computer, millions or even billions of transistors work together inside each chip. These transistors control the flow of electricity by turning signals on or off. In digital circuits, they represent the binary states—either a 1 (on) or a 0 (off). This switching action lets your devices process information, store data, and perform calculations at high speed. Transistors also amplify weak signals, making them strong enough for further processing. By packing so many transistors into a small chip, engineers achieve powerful performance and miniaturization.

Resistors and Capacitors

Resistors and capacitors play important supporting roles in integrated circuits. You use resistors to control how much current flows through different parts of the circuit. They help set voltage levels and protect sensitive components from too much current. Capacitors store and release electrical energy. They smooth out voltage changes, filter out noise, and help shape signals. Together, resistors and capacitors create timing circuits, filters, and oscillators that keep your devices running smoothly.

Tip:
Engineers build resistors and capacitors directly onto the silicon chip using special layers and patterns. For example, resistors can be formed by shaping thin films or using special regions in the silicon. Capacitors might use layers of metal and insulating material stacked together. This close integration keeps the circuit compact and efficient.

Diodes

Diodes act like one-way gates for electricity. You find them in ICs to make sure current flows in only one direction. This protects your devices from damage caused by reverse currents or voltage spikes. Diodes also help convert alternating current (AC) to direct current (DC), regulate voltage, and filter out unwanted signals. Some special diodes, like Schottky diodes, switch on and off very quickly, which is useful in high-speed circuits.

By combining transistors, resistors, capacitors, and diodes on a single chip, you get a powerful, reliable, and tiny circuit that can handle complex tasks in all your favorite devices.

How ICs Work

Integration on Silicon

You might wonder how engineers fit so many parts into such a tiny chip. The answer lies in a careful step-by-step process that builds electronic integrated circuits directly onto a thin slice of silicon. Here is how this process usually works:

1. Wafer Preparation: You start with pure silicon. Engineers grow a single crystal, slice it into thin wafers, and polish each one until it is smooth and clean.

2. Doping and Diffusion: Special atoms, like boron or phosphorus, get added to certain areas. This step changes how electricity moves through the silicon.

3. Photolithography: A light-sensitive coating called photoresist covers the wafer. Engineers shine ultraviolet light through a mask to create patterns for the circuit.

4. Etching: Chemicals or plasma remove parts of the wafer that are not protected by the photoresist. This step forms the tiny shapes of the circuit.

5. Deposition: Layers of insulating or conducting materials, such as silicon dioxide or metals, get added to build up the circuit.

6. Metallisation: Thin metal lines connect all the components, letting electricity flow where it is needed.

7. Inspection and Testing: Engineers check the wafer for defects using microscopes and automated tools.

8. Assembly and Packaging: The wafer gets cut into individual chips. Each chip is placed in a protective package with tiny wires or bumps for connecting to other devices.

Note:
By building everything on one piece of silicon, you get circuits that are reliable and easy to make in large numbers. Fewer connections mean fewer things can go wrong, so your devices last longer and work better.

Signal Processing

Once you have a finished chip, it needs to handle signals—tiny bursts of electricity that carry information. Electronic integrated circuits process these signals in several important ways:

1. Analog-to-Digital Conversion (ADC): Your chip takes real-world signals, like sound or temperature, and turns them into digital numbers that computers can understand.

2. Digital-to-Analog Conversion (DAC): When you need to send information back out, the chip changes digital numbers into smooth signals, like music or video.

3. Filtering: The chip removes unwanted noise or interference, so only the clean signal gets through.

4. Data Compression: It shrinks the size of the data, making it easier to store or send.

5. Signal Quality Improvement: The chip boosts weak signals and makes sure the information stays clear and accurate.

Tip:
Many chips use both analog and digital signal processing. This combination helps your devices work with everything from music and photos to wireless signals and sensor data.

Functions Performed

Electronic integrated circuits can do many jobs inside your devices. Each function uses different parts of the chip, working together to make things happen quickly and accurately. Here is a table that shows some of the main functions and how they work:

• You see these functions in action every time you use a phone, computer, or even a smart appliance. The chip amplifies your voice, switches between apps, processes photos, and keeps everything running on time.

Did you know?
Because all these functions happen inside one chip, your devices can be smaller, faster, and more reliable than ever before.

Types

Integrated circuits come in three main types: analog, digital, and mixed-signal. Each type handles signals in a different way and serves unique roles in your devices.

Analog

Analog ICs work with continuous signals. You use them to process real-world information like sound, temperature, or light. These chips include parts such as operational amplifiers, filters, and comparators. You often find analog ICs in audio systems, medical equipment, and sensors.

Tip:
Analog ICs help boost weak signals, filter out noise, and prepare data for digital processing.

Here is a table showing where you might see analog ICs in action:

Digital

Digital ICs handle signals as a series of 0s and 1s. You use them for logical operations, calculations, and data storage. These chips include logic gates, microcontrollers, and memory devices. Digital ICs form the core of computers, smartphones, and many smart gadgets.

• You can find digital ICs in:

  • CPUs and microcontrollers

  • Memory chips (RAM, flash)

  • Communication devices (network controllers, modems)

  • Embedded systems in cars and appliances

Digital ICs use Boolean logic to process information. Logic gates like AND, OR, and NOT make decisions based on binary inputs. These chips help your devices think, remember, and communicate.

Mixed-Signal

Mixed-signal ICs combine both analog and digital circuits on a single chip. You use them to connect the real world to digital systems. These chips can convert sound or light into digital data and back again. Mixed-signal ICs include analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and interface circuits.

Note:
Mixed-signal ICs are essential in smartphones, cars, and medical devices. They help your phone capture photos, your car read sensor data, and your smartwatch track your heartbeat.

Here is a quick comparison of the three types:

You rely on all three types of ICs every day. Each one plays a special part in making your devices smarter and more useful.

Advantages and Disadvantages

Benefits

You gain many benefits when you use integrated circuits in your devices. These tiny chips make electronics smaller, faster, and more reliable. Here are some of the main advantages:

• Integrated circuits take up much less space than separate parts. You can fit more features into smaller devices.

• Chips work faster because signals travel shorter distances inside the circuit.

• ICs use less power, which helps your batteries last longer.

• Mass production makes ICs cheaper to manufacture.

• Fewer connections mean fewer things can break, so your devices last longer.

• Encapsulation protects the chip from dust, moisture, and damage.

Tip:
Integrated circuits help you enjoy lightweight gadgets, quick performance, and lower costs.

You can see how ICs compare to older, discrete components in this table:

Limitations

Integrated circuits also have some drawbacks you should know about. These limits can affect how you design and repair electronic devices.

• You cannot easily change or update an IC after it is made.

• If one part fails, you often need to replace the whole chip, not just a single component.

• Finding and fixing problems inside a chip is harder than with separate parts.

• Chips have many pins, which makes them tricky to remove or repair.

• ICs can only handle small amounts of power, usually less than 10 watts.

• Some parts, like coils and transformers, cannot be built into the chip and must be added outside.

• Chips may not work well in high-voltage or low-noise situations.

• It is hard to make ICs with very stable performance at different temperatures.

Note:
While ICs offer many benefits, you should consider these limits when choosing them for your projects.

Applications

Everyday Devices

You use electronic integrated circuits every day, often without even noticing. These tiny chips power many of the devices you rely on at home, at school, and on the go. Here are some common examples:

• Smartphones and tablets

• Computers and laptops

• Televisions and gaming consoles

• Audio devices like amplifiers and headphones

• Cars and smartwatches

• Toys with lights or sounds

• Household appliances such as microwaves, washing machines, and refrigerators

• Medical devices, including pacemakers and patient monitors

• Routers and other telecommunications equipment

Chips have changed the way you experience technology. Devices have become smaller, faster, and more powerful. You can see this in the way smartphones fit in your pocket but still perform many tasks. The table below shows how advances in chip technology have transformed consumer electronics:

Tip: The miniaturization and reliability of chips help medical devices become more portable and accurate, improving patient care and diagnostics.

Industry Uses

You also find electronic integrated circuits in many industries. These chips help factories, hospitals, and cars work better and more efficiently. In industrial automation, chips control machines, monitor sensors, and connect equipment through networks. Power management chips regulate energy use, making systems safer and more reliable. In cars, chips enable real-time sensor fusion and advanced driver assistance systems, helping keep you safe on the road.

Microelectronics allow factories to use precise machine control and real-time monitoring. This leads to higher productivity and better quality. Application-specific chips, called ASICs, handle special tasks in areas like telecommunications, healthcare, and robotics. These chips process data quickly and use less energy, which helps companies save money and reduce their environmental impact.

The market for chips in industrial automation and control systems reached about $73 million in 2022. Experts expect this number to grow as more industries use automation and smart technology. In healthcare, chips make devices like pacemakers and portable monitors more accurate and dependable. Mixed-signal chips combine sensor data with digital processing, making medical equipment smarter and more efficient.

Note: Chips play a key role in making industries safer, greener, and more productive. You benefit from these improvements every time you use modern transportation, receive medical care, or enjoy reliable utilities.

You rely on electronic integrated circuits every day. These chips combine many parts to make your devices smaller, faster, and smarter. You see their impact in many ways:

• As technology advances, you will see even more powerful and energy-efficient devices.

• Learning about electronic integrated circuits helps you make better choices and appreciate the technology around you.

FAQ

What is the main job of an integrated circuit?

You use an integrated circuit to control and process signals in electronic devices. It acts like the brain of your device, helping it perform tasks quickly and efficiently.

Can you see the parts inside a microchip?

You cannot see the tiny parts inside a microchip with your eyes. Engineers use special microscopes to view the small transistors, resistors, and other components packed onto the silicon chip.

Why do devices need so many chips?

You find many chips in devices because each chip handles a different job. For example, one chip might manage memory, while another controls sound or power. This teamwork helps your device work better.

Tip:
Chips work together to make your phone, computer, or car smarter and faster.

Are all integrated circuits the same?

You will see many types of integrated circuits. Some work with analog signals, others with digital data, and some handle both. Each type fits a special role in your device.

Can you fix a broken chip?

You usually cannot fix a broken chip. If a chip fails, you often need to replace the whole chip instead of repairing the tiny parts inside.
